ER(S)8WB-ATH

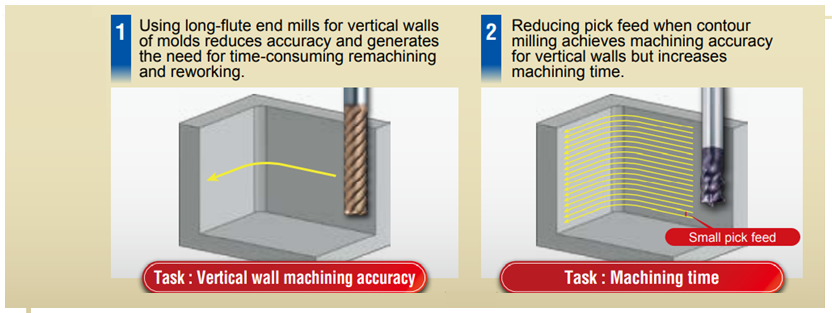

 Peripheral cutting edge design tailored for vertical wall milling

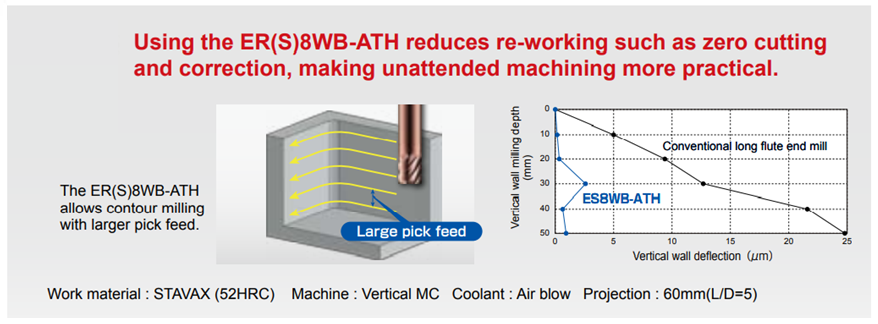

 ER(S)8WB-ATH Reduces Re-working / Zero Cutting

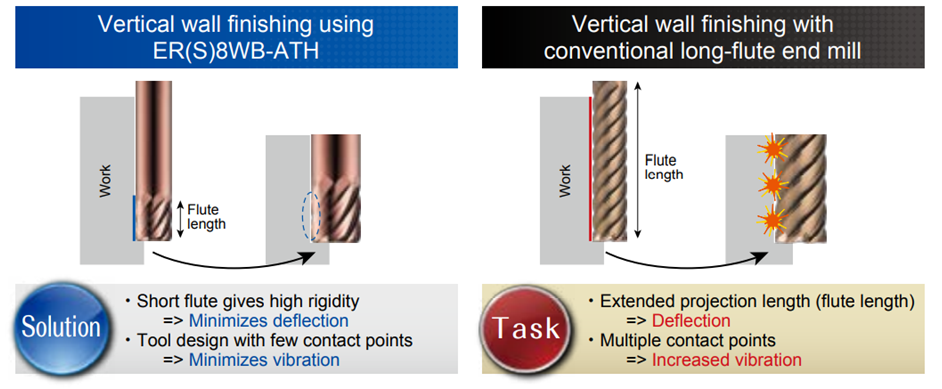

 The unique design reducing cutting force and vibration allows milling as intended

with minimal deflection.

* * MOLDINO's corner radius cutting edge design * ER8WB-ATH only

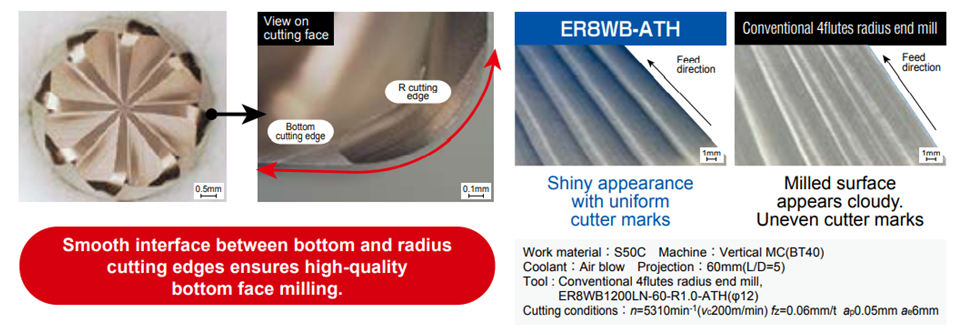

The ER8WB-ATH achieves high-quality bottom face milling.

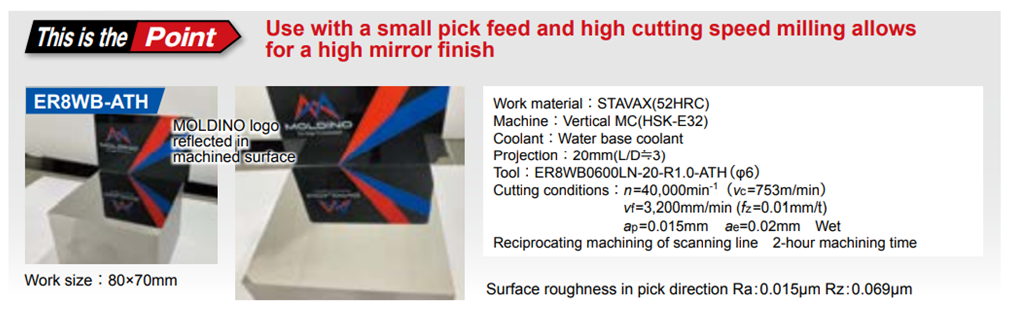

ER8WB-ATH allows good machining accuracy and machining surface

to be twofold efficiency for conventional tools.

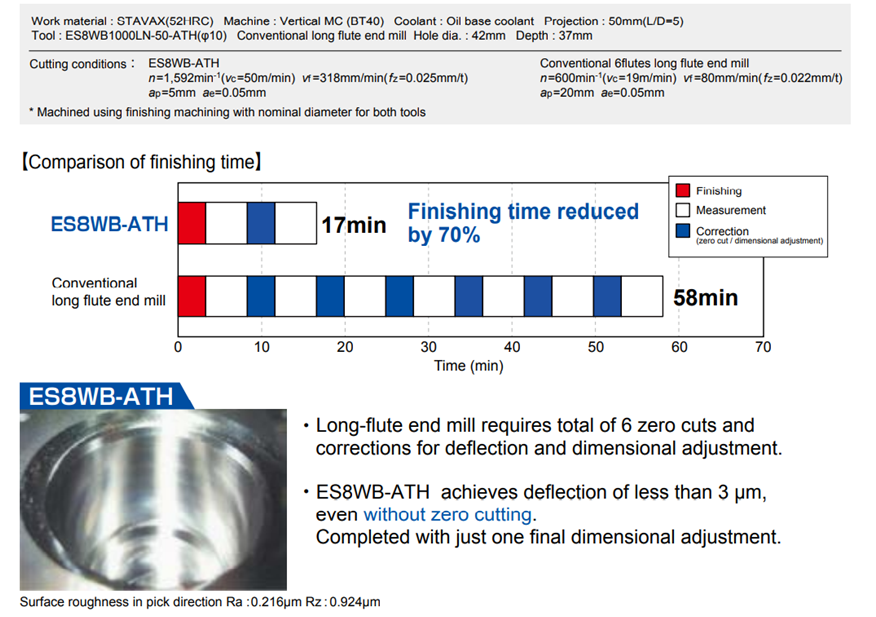

 ES8WB-ATH achieves good accuracy on plastic molds and bushing hole finishing.
